Disassembly Method Of Needle Roller Bearings

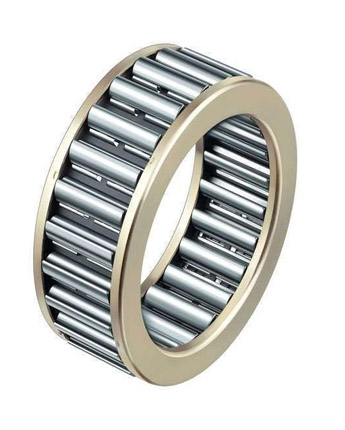

What is needle roller bearing
Needle roller bearings are roller bearings with cylindrical roller, relative to its diameter, the roller is thin and long.This type of roller is called a needle roller.
Advantages of needle roller bearings
Needle roller bearings are equipped with thin and long rollers, so the radial structure is compact, the inside diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, especially suitable for the radial installation size of the limited supporting structure.Needle roller bearings according to the use of different occasions, processing accuracy and surface quality should be combined with bearing ring, purpose.Needle roller bearing is a bearing unit composed of centripetal needle roller bearing and thrust bearing components.

Disassembly method of needle roller bearings

1.Needle roller bearings are equipped with thin and long rollers, so the radial structure is compact, the inside diameter size and load capacity are the same as other types of bearings, the outer diameter is the smallest, especially suitable for the radial installation size of the limited supporting structure.Needle roller bearings according to the use of different occasions, processing accuracy and surface quality should be combined with bearing ring, purpose.Needle roller bearing is a bearing unit composed of centripetal needle roller bearing and thrust bearing components.Disassembly method of needle roller bearings
2.Tap on a method.Knock force general on bearing inner ring, shielding room tapping force should not be added in rolling element bearings and keep on the shelf, this method is simple, but easily damaged bearings, when bearing, at the end of the shaft, use less than the copper rod of bearing inside diameter or other soft metal materials resist shaft end, lower bearing block, hammer knock gently, can be removed.Application this law should notice the position that pad block places wants appropriate, point of emphasis should correct.
3.Hot tear open method.Used to remove tightly fitted bearings.First, the oil heated to about 100 degrees Celsius is poured on the bearing to be dismantled with an oil can. After the bearing ring is heated and expanded, the bearing can be pulled out with a puller.Push method.Press the bearing with the press, the work is stable and reliable, do not damage the machine and the bearing shielding machine room.There are manual press press, mechanical or hydraulic press press.At the same time pay attention to the press should be on the center of the shaft, not pressure deviation.
4.Pull method.Special puller is used. When disassembling, the bearing will be pulled out slowly as long as the handle is rotated.When removing the outer ring of the bearing, the bend Angle of the puller feet should be opened outward.When removing the inner ring of the bearing, the puller feet should be stuck inward on the end face of the inner ring of the bearing.
Selection of needle roller bearings
According to the use of different occasions, can be used without inner ring of the bearing or needle roller and cage components, at this time to suit the bearing surface of the surface of the shaft and the shell hole directly as inner and outer rolling bearing surface, in order to ensure the load capacity and operation performance and you have the same ring bearing, axis or shell hole hardness on the surface of the raceway, machining accuracy and surface quality should be as a bearing ring raceway.This kind of bearing can bear only radial load.
The price of needle roller bearings
The price of needle roller bearings is affected by many factors such as market, material and quotation. If you want to know the specific price of needle roller bearings，please contact us to make enquiries.
